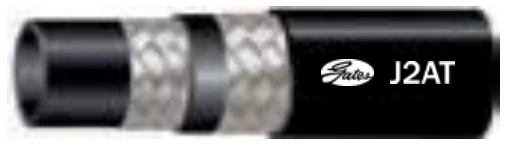

Gates® J2AT Hydraulic Hose 690 bar
Recommended use: Hydraulic jack applications. Meets the Material Handling Institute IJ 100 specification for hydraulic hoses and assemblies used in jacking systems. Rated for 10,000 psi static pressure only.
MEETS "MSHA 2G" FLAME RESISTANCE ACCEPTANCE. MEETS THE IJ 100 JACK HOSE SPECIFICATION.
Size · Working pressure4 J2AT
TubeBlack, oil-resistant synthetic rubber (Nitrile).
ReinforcementTwo high-tensile steel wire braids.
| Inside diameter | Outside diameter | Working pressure | Burst pressure | Min. bend radius | Vacuum | Code | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | mm | PSI | bar | PSI | bar | in | mm | in Hg | REF | Product no. |
| 0,25 | 6,7 | 15,0 | 10000 | 690 | 20000 | 1380 | 2,0 | 50,8 | — | 4 J2AT | 46578737 |
| 0,38 | 9,5 | 18,8 | 10000 | 690 | 20000 | 1380 | 2,5 | 63,5 | — | 6 J2AT | 46578751 |
Swipe to see the full table
| Tube | Black, oil-resistant synthetic rubber (Nitrile). |
|---|---|
| Reinforcement | Two high-tensile steel wire braids. |
| Cover | Black, oil- and abrasion-resistant synthetic rubber (Nitrile and PVC). |
| Temperature range | -40°C to +49°C |
- Lifting / jacks: hydraulic jack systems (IJ 100; static pressure only)
