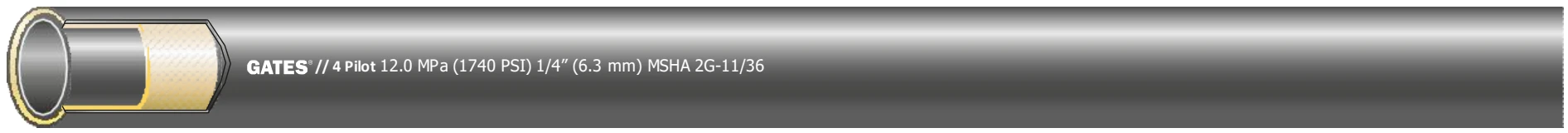

Gates® Pilot Wire and Textile Braided Hydraulic Hose
Recommended use: Hydraulic pilot control applications in tight spaces on industrial, construction and agricultural equipment; designed for superior signal response.
Size · Working pressure3 Pilot
TubeNBR (nitrile)
ReinforcementOne braid of high-tensile steel wire.
| Size | Inside diameter | Outside diameter | Working pressure | Burst pressure | Min. bend radius | Weight | Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | inch | mm | PSI | MPa | PSI | MPa | mm | kg/100 m | REF |
| -3 | 5 | 3/16 | 0,37 | 9,3 | 1740 | 12,0 | 6960 | 48,0 | 20 | 9 | 3 Pilot |
| -4 | 6 | 1/4 | 0,44 | 11,2 | 1740 | 12,0 | 6960 | 48,0 | 25 | 14 | 4 Pilot |
| -5 | 8 | 5/16 | 0,54 | 13,6 | 1740 | 12,0 | 6960 | 48,0 | 30 | 21 | 5 Pilot |
| -6 | 10 | 3/8 | 0,63 | 15,9 | 1740 | 12,0 | 6960 | 48,0 | 45 | 23 | 6 Pilot |
Swipe to see the full table
| Tube | NBR (nitrile) |
|---|---|
| Reinforcement | One braid of high-tensile steel wire. |
| Cover | NBR/PVC based. MSHA approved. |
| Temperature range | -40°C to +100°C. For water emulsions etc. |
| Standards | Gates proprietary product. |
| Couplings | P1T. |
- Very high flexibility, light weight and extremely tight bend radii. Superior kink resistance. Developed for high hose-to-hose abrasion resistance.
- Tested up to 1 million impulse cycles.
- Superior signal response thanks to minimal expansion under pressure.
| Size | Ferrule code | Type |
|---|---|---|
| -3 | 3MP1F-1 | P1T Ferrule |
| -4 | 4MP1F-1 | P1T Ferrule |
| -5 | 5MP1F-1 | P1T Ferrule |
| -6 | 6MP1F-1 | P1T Ferrule |
- Construction machinery: pilot control lines in tight spaces on construction equipment
- Agricultural machinery: pilot control lines in tight spaces on agricultural equipment
- Industrial plants / factories: pilot control lines in tight spaces on industrial equipment
Steel Wire and Textile Braided Hydraulic Hoses
Gates® MegaTech™ Steel Wire and Textile Braided Hydraulic Hose (R5)
- Tube
- CPE (chlorinated polyethylene) based.
- Reinforcement
- Single steel wire braid.
- Cover
- Petroleum-resistant woven braid, impregnated with synthetic rubber. MSHA approved.
Gates® WaterBlast Water Jet Hose (1000 bar)
- Tube
- CR (chloroprene) based.
- Reinforcement
- Six spiral layers of steel wire.
- Cover
- XtraTuff™. MSHA approved.
