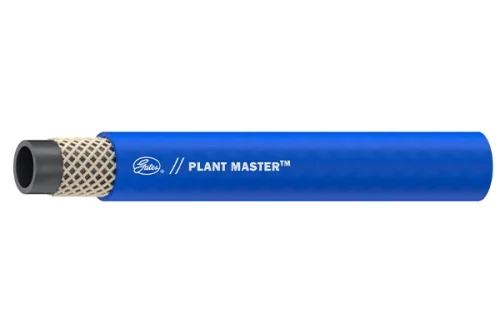

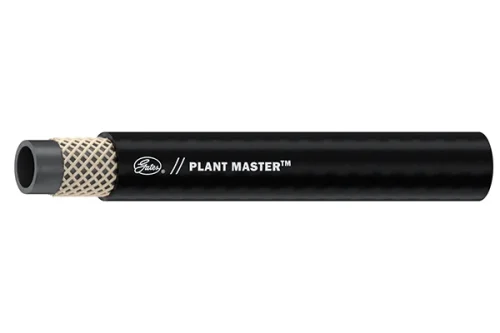

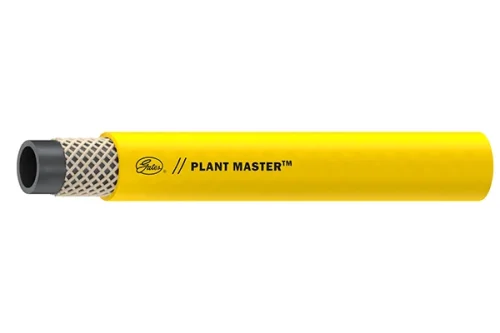

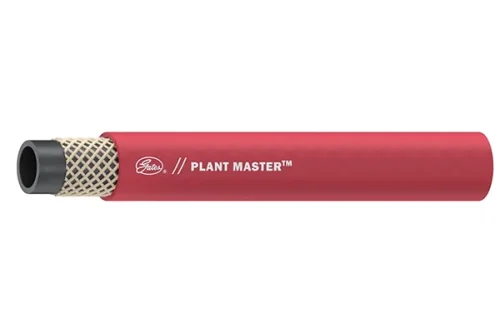

Gates® Plant Master™ Hose
Gates® Plant Master™ Hose
Plant Master™ hoses have an ARPM Class C oil resistance rating, which means they should not be used in oily environments. Typical uses include air and water applications that require maximum flexibility in all kinds of industries, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying applications such as diluted herbicide solutions.
Size · Working pressure4PM1000
| Inside diameter | Outside diameter | Working pressure | Burst pressure | Min. bend radius | Vacuum | Code |
|---|---|---|---|---|---|---|
| in | in | PSI | PSI | in | in Hg | Part no. |
| 1/4 | 0,5 | 200 | 600 | 3 | 30 | 4PM1000 |
| 5/16 | 0,53 | 200 | 600 | 3 | 30 | 4PM1001 |
| 3/8 | 0,66 | 200 | 600 | 3 | 30 | 4PM1003 |
| 1/2 | 0,81 | 200 | 600 | 5 | 25 | 4PM1011 |
| 5/8 | 0,97 | 200 | 600 | 6 | 20 | 4PM1012 |
| 3/4 | 1,11 | 200 | 600 | 6 | 15 | 5PM1001 |
| 1 | 1,4 | 200 | 600 | 3 | 10 | 6PM1002 |
| 1 1/4 | 1,3 | 200 | 600 | 3 | 10 | 6PM1003 |
| 1 1/2 | 1,2 | 200 | 600 | 3 | 10 | 6PM1004 |
Swipe to see the full table
- Temperature range: -40°C to +93°C (-40°F to +200°F) continuous service.
- Can handle mild chemicals such as diluted agricultural solutions.
- Tube and cover: ARPM (Class C) - limited oil resistance.
- Working pressures range from 150 psi to 300 psi.
- Tube and cover: EPDM.
- Design factor: 3:1.
- Size: 1/4" to 4".
- Construction machinery: air and water lines on construction sites
- Agricultural machinery: air, water and light spraying in agriculture
- Mining: air and water lines in mining
- Industrial plants / factories: in-plant air and water lines
- Automotive / steering: air and water lines in vehicle repair workshops
- Air and water lines: air and water lines that require flexibility
